4-Wire Cable Harness Tester

MICROTEST 8761 series offers testing points of 64/128/256 points, with AC withstand voltage up to 1000V and DC withstand voltage up to 1500V.

MICROTEST 8761K series provides testing points of 512 points, with AC withstand voltage up to 700V and DC withstand voltage up to 1000V.

Cable Tester 8761 Series
8761FA/8761NA/8761N

  • 4-wire measurement conductance 1mΩ-52Ω
  • Test pin 64/128/256
  • Number of test files up to 500 sets
  • Open/Short
  • Cond. Resistance Test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors

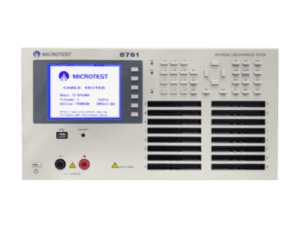

Cable Tester 8761K Series
8761NAK/8761NK

  • 4-wire measurement Cond. Resistance 1mΩ-52Ω
  • Low Resistance Scanning Test 10mΩ-52Ω
  • Test pin 512
  • Number of test files up to 500 sets
  • Open/Short
  • Cond. Resistance Test
  • AC/DC Hipot Test
  • DC insulation
  • Support bar code scan and print function
