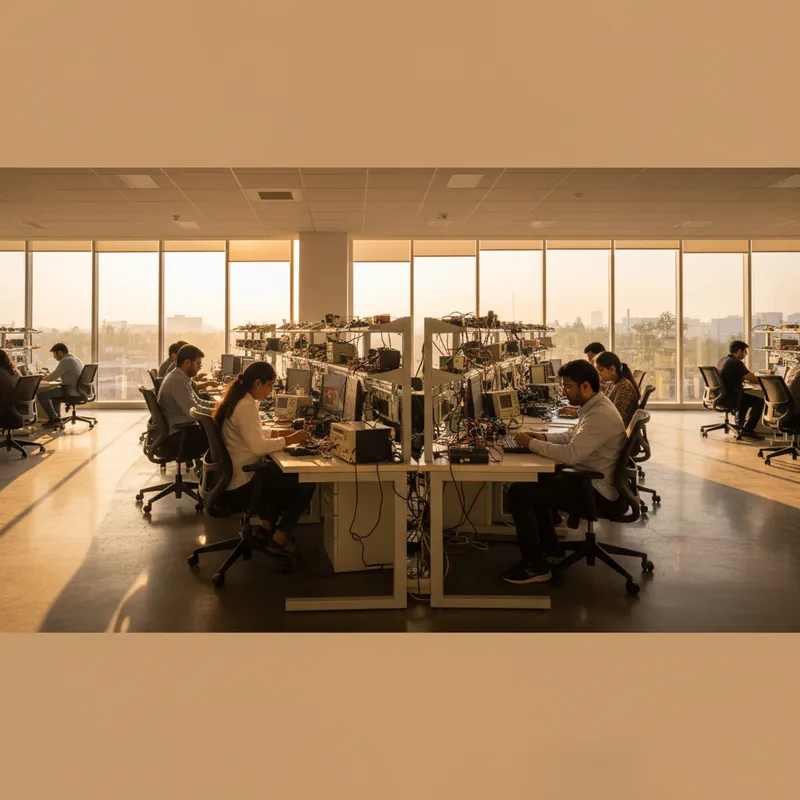

Programmable electronic load testing a power supply unit in an Indian laboratory

Power Supply Testing with Programmable Electronic Loads: A Practical Guide for Indian Labs

GSAS Engineering · · 7 min read

Why Power Supply Testing Requires Electronic Loads

Every power supply, AC-DC converter, DC-DC converter, battery charger, LED driver, or USB PD adapter, must be tested under load to verify that it meets its specifications. The power supply’s datasheet specifies output voltage accuracy, load regulation, line regulation, transient response, ripple, and efficiency, all of which require a controlled, variable load to measure.

A resistor bank provides a fixed load. A programmable electronic load provides a dynamic, precisely controlled load that can sweep across the full operating range, simulate transient conditions, and execute automated test sequences. For Indian power supply manufacturers and R&D labs, programmable electronic loads from GW Instek provide this capability.

Operating Modes

GW Instek programmable electronic loads (PEL series and AEL series) support four fundamental operating modes:

Constant Current (CC) Mode

The load maintains a set current regardless of the DUT’s output voltage (within the load’s operating range). This is the most common mode for testing voltage sources, set the load current and measure the DUT’s output voltage.

Use case: Load regulation testing, step the load current from 0 to rated maximum and measure how much the output voltage changes.

Constant Voltage (CV) Mode

The load adjusts its current draw to maintain a set voltage at its input terminals. The DUT’s output current changes as the load regulates.

Use case: Battery discharge testing, set the load to the battery’s end-of-discharge voltage, and the current decreases as the battery depletes.

Constant Resistance (CR) Mode

The load behaves as a programmable resistor, current is proportional to voltage.

Use case: Simulating resistive loads (heaters, incandescent lamps, legacy equipment) for power supply testing.

Constant Power (CP) Mode

The load maintains a set power by adjusting current as voltage changes.

Use case: Testing power supplies at their rated power output across different voltage conditions.

Key Specifications That Matter

When selecting an electronic load for power supply testing, five parameters define whether the instrument meets your application requirements.

Power rating. The maximum continuous power the load can dissipate. A common mistake is selecting a load based solely on voltage and current ratings without checking the power derating curve. At high voltages, the current capacity may be derated, and vice versa.

Slew rate. How fast the load can transition between current levels. For transient response testing, a mandatory test for any power supply targeting server, telecom, or automotive applications, the slew rate must exceed the DUT’s specified transient bandwidth. Slew rates of 2.5 A/us and above are necessary for meaningful transient characterisation.

Voltage range. The maximum input voltage the load can handle. EV and renewable energy applications increasingly require loads rated to 600 V or 1000 V DC.

Dynamic loading. The ability to switch between two current levels at a programmable frequency and duty cycle. This simulates pulsed loads and is essential for characterising output capacitor ESR effects and control loop stability.

Parallel operation. For high-power DUTs, multiple load modules must operate in parallel with current sharing. The synchronisation quality between modules determines whether the combined load presents a clean, unified impedance to the DUT.

Test 1: Load Regulation

Load regulation measures how much the output voltage changes when the load current changes from minimum to maximum rated current.

Procedure:

  1. Connect the DUT output to the electronic load
  2. Set the load to CC mode at minimum load (e.g., 10% of rated current)
  3. Measure and record the output voltage
  4. Step the load to 25%, 50%, 75%, and 100% of rated current
  5. Measure and record the output voltage at each step
  6. Calculate regulation: (V_no_load - V_full_load) / V_no_load x 100%

A well-designed power supply shows less than 1% load regulation. Poor regulation indicates issues with the feedback loop, output impedance, or PCB layout.

Test 2: Transient Response

Transient response measures how the output voltage responds to a sudden change in load current.

Procedure:

  1. Configure the electronic load for dynamic mode, alternating between two current levels
  2. Set the low current (e.g., 10% rated) and high current (e.g., 90% rated)
  3. Set the transition slew rate to the maximum the load supports
  4. Monitor the DUT output voltage with an oscilloscope
  5. Measure the voltage overshoot, undershoot, and recovery time

GW Instek PEL loads support programmable slew rates and transition times, allowing precise control of the load step characteristics.

Test 3: Efficiency Measurement

Power supply efficiency = (output power / input power) x 100%.

Procedure:

  1. Measure input voltage and current (use a power meter or separate DMM on the input side)
  2. Set the electronic load to draw rated output current
  3. Measure output voltage at the load terminals and output current from the load reading
  4. Calculate: efficiency = (V_out x I_out) / (V_in x I_in) x 100%
  5. Repeat across the load range (25%, 50%, 75%, 100%) to generate an efficiency curve

For power supply manufacturers meeting BIS (Bureau of Indian Standards) and BEE (Bureau of Energy Efficiency) efficiency requirements, this test is mandatory.

Test 4: Output Ripple and Noise

Procedure:

  1. Set the load to rated current (CC mode)
  2. Measure the AC component of the output voltage using an oscilloscope with 20 MHz bandwidth limit (per JEITA/IPC measurement standards)
  3. Record peak-to-peak ripple voltage

Excessive ripple indicates insufficient output capacitance, high ESR capacitors, or inadequate feedback loop bandwidth.

Test 5: Burn-In

Burn-in testing operates the power supply at full load (sometimes at elevated temperature) for an extended period, typically 24 to 72 hours, to screen for infant mortality failures.

Procedure:

  1. Set the load to rated current
  2. Configure the load’s protection limits (OVP, OCP) to detect DUT failure
  3. Run for the specified duration
  4. Monitor output voltage stability, a drifting output indicates degradation

For production burn-in of hundreds of units, automated test sequences with SCPI remote control allow unattended operation. GW Instek loads support SCPI over LAN, USB, and GPIB.

Applications Across Indian Industry

Consumer electronics. BIS-mandated testing of USB chargers, laptop adapters, and LED drivers requires load testing at rated and overload conditions. The PEL-3000 handles the 5 W to 200 W range that covers most consumer power supplies manufactured in India.

Telecom power. India’s 5G rollout is driving demand for 48 V rectifier and DC-DC converter testing. Telecom power supplies require tight regulation under dynamic load conditions, making the electronic load’s transient capability critical.

Industrial and solar. MPPT inverter testing, industrial SMPS validation, and UPS battery charger testing all require electronic loads with wide voltage ranges and high continuous power ratings.

Choosing the Right Load

GW Instek offers electronic loads across a wide power range:

  • PEL-500 series: Bench-scale loads for low to medium power testing (up to a few hundred watts)
  • PEL-3000 series: Programmable loads for production and R&D applications with dynamic loading up to 20 kHz
  • PEL-5000 series: Multi-kilowatt ratings with parallel operation capability for high-power DUTs
  • AEL series: Regenerative loads for high-power testing (5–20 kW) with energy recovery

Engineers evaluating programmable electronic loads often compare GW Instek’s PEL series against alternatives from Prodigit and Chroma. GW Instek offers competitive price-to-performance with local GSAS application support and INR invoicing across India.

For labs in Bengaluru, Hyderabad, Chennai, Pune, Mumbai, Delhi NCR, and Visakhapatnam testing power supplies from a few watts to tens of kilowatts, GW Instek’s product range covers the full spectrum.
