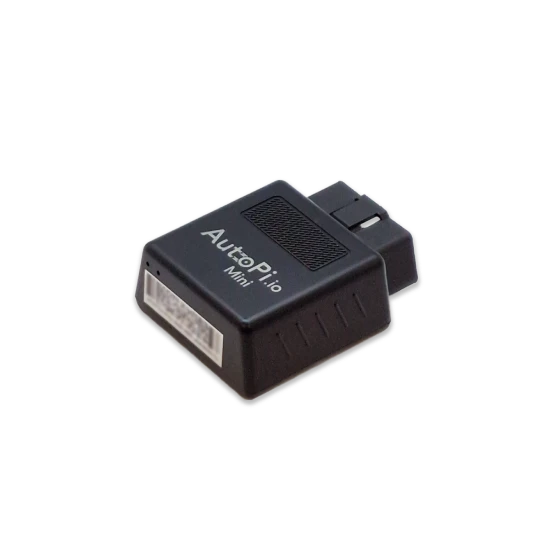

AutoPi AutoPi Mini
Automotive TelematicsPlug-and-play OBD-II telematics device with 4G LTE Cat 1, GPS, and EV parameter logging, battery SoC, cell voltages, charging patterns, in a compact dongle form factor. Buy in India.
Vehicle Interface
OBD-II (CAN, K-Line, KWP)
Cellular
4G LTE Cat 1 (built-in SIM, 188 countries)
Positioning
GPS/GNSS
EV Telemetry
Battery SoC, cell voltages, HV metrics
Form Factor
Compact OBD-II dongle (deck-of-cards size)
Platform
AutoPi Cloud (zero subscription)
Overview
About AutoPi Mini
The AutoPi Mini is a compact, plug-and-play vehicle telematics device, not bigger than a deck of cards, that connects directly to any vehicle’s OBD-II port. It combines 4G LTE Cat 1 cellular connectivity (with built-in SIM covering 188 countries) with GPS/GNSS positioning to provide real-time vehicle tracking, trip logging, OBD-II diagnostic data, and EV-specific telemetry including battery state-of-charge, cell voltages, and charging patterns.
Once plugged into the OBD-II port, the AutoPi Mini powers on automatically, establishes a cellular connection, and begins transmitting vehicle data to the AutoPi Cloud platform at zero subscription cost. Fleet managers access dashboards for live tracking, trip history, geofencing alerts, and vehicle health monitoring. The Mini supports legacy OBD protocols including K-Line and KWP alongside CAN, making it compatible with a wide range of vehicles.
Technical Specifications
| Feature | Specification |
|---|---|
| Processor | Proprietary microprocessor |
| Cellular | 4G LTE Cat 1 (built-in SIM, 188 countries) |
| OBD-II | CAN, ISO 9141-2, ISO 14230-4 KWP, K-Line |
| GNSS | GPS with internal antenna |
| Sensors | 3-axis accelerometer |
| Bluetooth | 4.0 + BLE |
| Power Input | 10–30 V DC |
| Backup Battery | 170 mAh |
| Nominal Current | < 33 mA |
| Sampling Rate | 4 samples/sec (millisecond timestamps) |
| Operating Temp | -40°C to +85°C (widest range in lineup) |
| Dimensions | 67.2 × 49.6 × 25 mm, 63 g |
| Cloud | AutoPi Cloud (zero subscription) |
EV Telemetry
The AutoPi Mini is particularly capable for electric vehicle monitoring, tracking parameters that matter for EV fleet operators: battery state-of-charge (SoC), state-of-health (SoH), minimum and maximum cell voltages, HV battery temperature, available power and energy, charging patterns, and lifetime energy metrics. These capabilities enable fleet managers to optimize charging strategies, monitor battery degradation, and enhance charging efficiency by up to 25% through eco-driving insights.
AutoPi Hardware Comparison
| Feature | Mini | TMU CM4 | CAN-FD Pro |
|---|---|---|---|
| Processor | Proprietary MCU | RPi CM4 Cortex-A72 | RPi CM4 Cortex-A72 |
| Memory | Proprietary | 1 GB LPDDR4 | 4 GB LPDDR4 |
| CAN-FD | No | 2x channels | 2x channels |
| OBD-II | Yes (CAN + K-Line) | Yes | Yes |
| Cellular | 4G LTE Cat 1 | 4G LTE Cat 4 | 4G LTE Cat 4 |
| Wi-Fi | No | 2.4/5 GHz 802.11ac | 2.4/5 GHz 802.11ac |
| Bluetooth | 4.0 + BLE | 5.0 + BLE | 5.0 + BLE |
| Sampling Rate | 4/sec | 100/sec | ~4,000/sec |
| Docker/Edge | No | Yes | Yes |
| DBC Files | No | Yes | Yes |
| CAN Log Formats | No | No | MDF4, CSV, ASC |
| Expansion | None | HAT, USB, Ethernet | HAT, USB, Ethernet |
| Operating Temp | -40°C to +85°C | -20°C to +70°C | -20°C to +70°C |
| Price | €89 | From €235 | €599 |
| Best For | Fleet tracking, EV monitoring | Edge computing, R&D | High-speed CAN logging |
The AutoPi Mini is the right choice for fleet tracking, driver behavior monitoring, EV battery health monitoring, and basic vehicle diagnostics where the full edge computing capability of the TMU CM4 is not required. Its compact form factor, built-in SIM, and plug-and-play setup mean vehicles can be provisioned in minutes without custom wiring or installation. GSAS Micro Systems provides the AutoPi Mini with fleet onboarding guidance and AutoPi Cloud configuration support for fleet operators and logistics teams across India.
