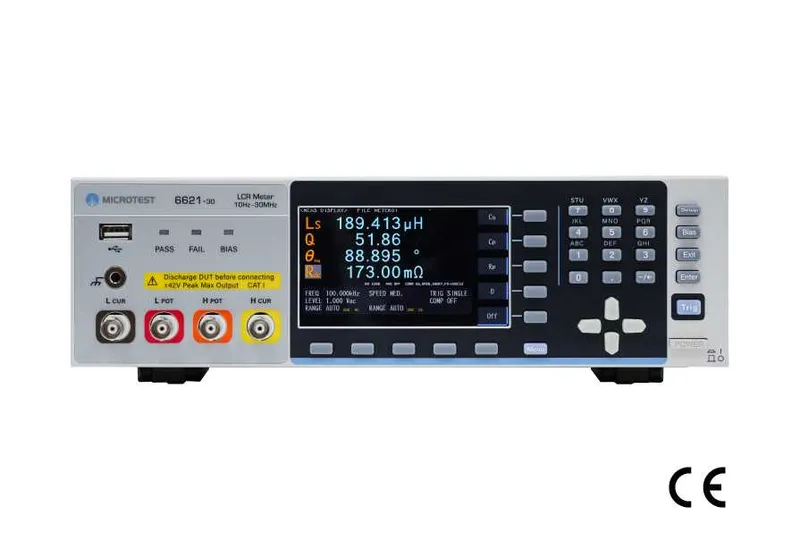

Microtest 6621 Series LCR Meter

The Microtest 6621 Series LCR Meter combines a typical ±0.05% accuracy with a compact benchtop form factor, weighing just 3.4 kg with a 4.3-inch TFT display. Covering frequencies from 10 Hz to 30 MHz, the 6621 handles standard component testing through high-frequency characterization of RF inductors, MLCC capacitors, and EMI filter elements, delivering measurement performance comparable to full-size instruments at a fraction of the bench space.

Specifications

Feature	Specification
Frequency Range	10 Hz to 30 MHz
Basic Accuracy	Typical ±0.05%
Measurement Speed	<3 ms
Parameters	L, C, R, Z, D, Q, ESR, DCR, θ
Level Control	Automatic Level Control (ALC)
Correction	Open/short/load compensation
Comparator	BIN sorting with pass/fail
Display	4.3-inch TFT
Weight	3.4 kg
Interface	USB, LAN

Compact Form Factor, Full Performance

With sub-3 ms measurement speed, the 6621 Series supports high-throughput production testing alongside its R&D capabilities. Automatic level control maintains consistent test signal amplitude, open/short/load correction compensates for fixture parasitics, and BIN comparator functions enable automated pass/fail sorting on production lines.

Applications

The compact form factor makes the 6621 particularly well-suited for workbench-constrained environments, multi-station production floors, and portable field testing applications. Engineers characterizing RF inductors, MLCC capacitors, EMI filter components, and wound magnetics benefit from 30 MHz frequency coverage in a lightweight package that can move between test stations.

Watch the Microtest 6621 Series LCR Meter on YouTube

GSAS Micro Systems provides the Microtest 6621 Series across India with INR invoicing, local calibration support, and application engineering. Teams in Bengaluru, Hyderabad, Chennai, Pune, Mumbai, and Delhi NCR provide demonstration, fixture guidance, and after-sales service for Indian manufacturers seeking high-accuracy LCR measurement without the footprint and cost of larger instruments.
