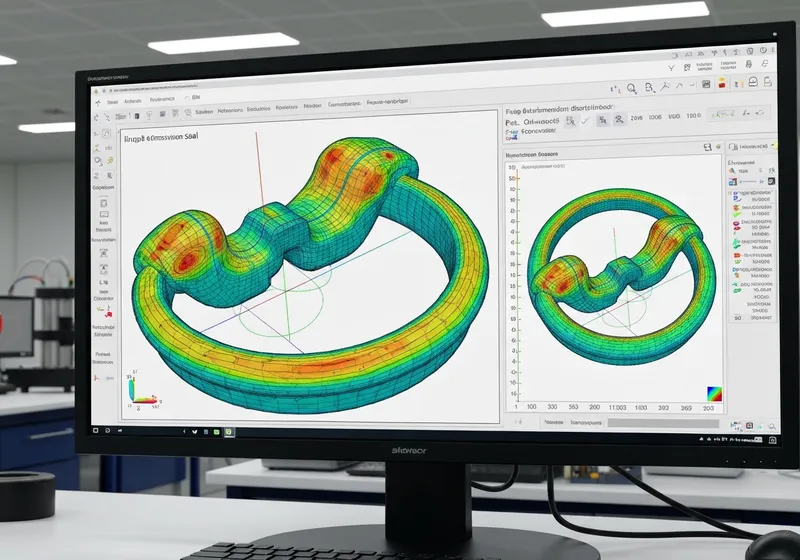

Dytran

Dytran is Cadence’s explicit dynamics solver designed for simulating short-duration, high-energy events — vehicle crash and occupant safety, bird strike on aircraft structures, blast loading on military vehicles, projectile penetration, fuel tank sloshing, and container drop testing. Unlike implicit FEA solvers (Nastran, Marc) that solve equilibrium equations at each time step, Dytran uses explicit time integration that is naturally suited for highly nonlinear, transient dynamic problems involving large deformations, material failure, and contact between many bodies.

Dytran’s unique capability is its coupled Lagrangian-Eulerian formulation for fluid-structure interaction (FSI). The structural response is modeled with Lagrangian finite elements (the mesh moves with the material), while fluid, gas, or explosive loading is modeled with Eulerian elements (the mesh is fixed and material flows through it). This coupled approach enables simulation of fuel tank sloshing during vehicle maneuvers, underwater explosion loading on ship hulls, bird strike on turbine blades (where the bird material must flow around the structure), and blast wave interaction with vehicle armor — problems that purely Lagrangian codes cannot handle without severe mesh distortion.

For Indian defence organizations simulating blast protection (IED, mine blast), automotive teams modeling crash safety and occupant protection, and aerospace teams analyzing bird strike and containment (critical for engine certification), Dytran provides the explicit dynamics and FSI capabilities required. GSAS provides Dytran licensing and application support for impact and blast simulation workflows.

Capability Overview

Capability	Detail
Explicit Time Integration	Central difference scheme for transient dynamics
Lagrangian FE	Shell, solid, beam elements for structural response
Eulerian FE	Fluid, gas, explosive modeling with Euler solver
Lagrangian-Eulerian Coupling	Automated FSI for impact, blast, sloshing
Material Models	Metals (Johnson-Cook), composites, foams, soils, explosives (JWL)
Contact	General contact with erosion for penetration/perforation
Failure	Element erosion, progressive damage, delamination
HPC	Distributed memory parallel (DMP) for large models
Pricing	Request Quote

Watch the Dytran on YouTube

Key Applications

• Automotive: Frontal/side/rear crash simulation, occupant safety, fuel tank integrity, pedestrian protection
• Aerospace: Bird strike on nacelle/windshield, fan blade containment, tire debris impact, ditching
• Defence: IED/mine blast on vehicles, ballistic penetration, armor optimization, underwater explosion
• Industrial: Container drop test, pressure vessel burst, accidental loading scenarios
• Marine: Ship hull slamming, underwater shock, fuel tank sloshing
