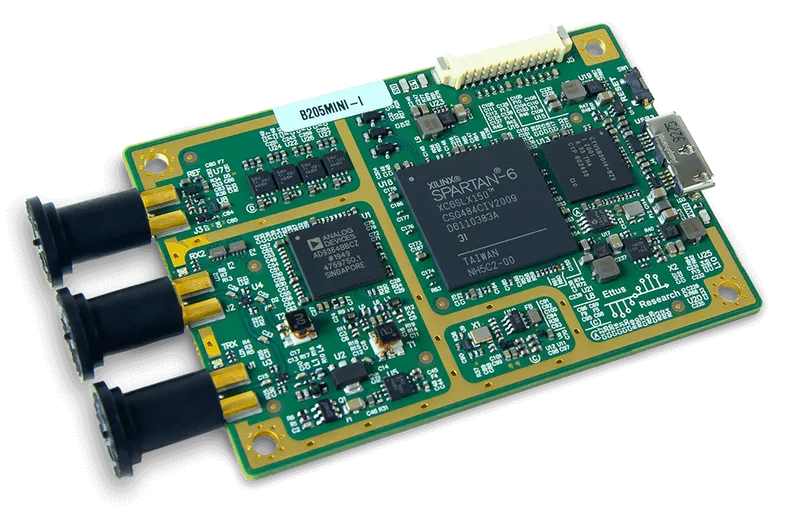

Digilent NI Ettus USRP B205mini-i
Software Defined RadioCompact single-channel SDR covering 70 MHz to 6 GHz with GPSDO option and GPIO header in a board-level module for embedded wireless applications. India pricing from GSAS.
Frequency
70 MHz – 6 GHz continuous
Channels
1 Tx / 1 Rx (full duplex)
Bandwidth
Up to 56 MHz
Sample Rate
61.44 MS/s quadrature
FPGA
Xilinx Spartan-6
Interface
USB 3.0 (bus-powered)
Overview
About NI Ettus USRP B205mini-i
The NI Ettus USRP B205mini-i is a compact, single-channel software defined radio module providing continuous frequency coverage from 70 MHz to 6 GHz with GPIO header access and optional GPSDO (GPS Disciplined Oscillator) support for frequency-locked operation. Building on the B200mini’s compact form factor, the B205mini-i adds GPIO expansion and GPSDO connectivity, enabling time-synchronized and location-stamped RF measurements for deployed wireless sensing, geolocation research, and distributed spectrum monitoring applications.
USRP B205mini-i Specifications
| Feature | Specification |
|---|---|
| Frequency Range | 70 MHz – 6 GHz continuous |
| Channels | 1 Tx / 1 Rx (full duplex) |
| Instantaneous Bandwidth | Up to 56 MHz |
| Sample Rate | 61.44 MS/s quadrature |
| RF IC | Analog Devices AD9364 |
| FPGA | Xilinx Spartan-6 |
| Interface | USB 3.0 SuperSpeed |
| Power | Bus-powered via USB |
| GPIO | Header for digital I/O |
| GPSDO | Optional GPS Disciplined Oscillator |
| Form Factor | Board-level module |
| Software | UHD, GNU Radio |
GPSDO and GPIO Expansion
The optional GPSDO support provides GPS-disciplined 10 MHz reference and PPS (pulse-per-second) signals, enabling the B205mini-i to maintain frequency accuracy to parts-per-billion levels and timestamp captures with GPS precision. The GPIO header exposes digital I/O lines for triggering external equipment, controlling RF switches, or interfacing with custom hardware, capabilities not available on the simpler B200mini.
Applications
The B205mini-i targets deployed wireless sensing nodes, portable direction-finding systems, GPS-synchronized spectrum monitoring, drone-mounted RF payloads, and field-deployed cognitive radio installations where time-synchronized measurements and compact form factor are both required. Full UHD compatibility ensures software portability across the USRP product family.
GSAS Micro Systems provides the USRP B205mini-i as part of the NI Ettus SDR portfolio available through Digilent, with guidance on USRP model selection and UHD/GNU Radio setup for research teams across Bengaluru, Chennai, Hyderabad, Delhi NCR, Mumbai, and Pune.
