Microtest DC Bias Current Source (6210-6243H)

The Microtest 6210-6243H DC Bias Current Source series provides standalone DC bias current sources for inductor and magnetic component characterization under real-world current loading conditions. The models span 20 A on the single-unit 6225 up to 640 A on the sixteen-unit 6243H, covering everything from small signal inductors to high-current power inductors used in automotive DC-DC converters, server power supplies, and industrial motor drives.

Module Range

Model	Max DC Bias Current	Bias Units	Typical Application
6225	20 A	1	Signal inductors, low-power magnetics
6210	60 A	6	Signal and small power inductors
6220	120 A	6	Power supply inductors, telecom magnetics
6223	120 A	6	Power inductors, to 10 MHz with the 6632
6240	320 A	8	Automotive DC-DC converter inductors
6243	320 A	8	High-current power inductors
6243H	640 A	16	EV traction inverter chokes, high-current bus bars

Pairing and Frequency Response

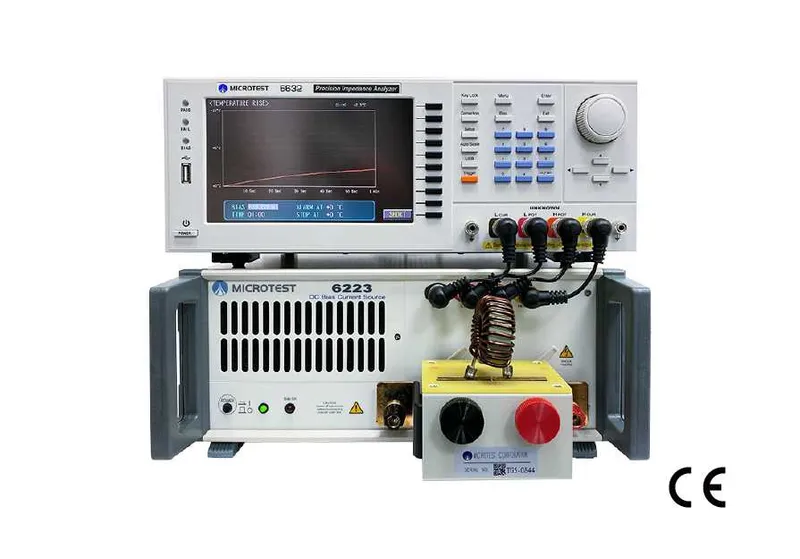

Frequency response depends on the instrument they pair with: 100 Hz to 10 MHz with the 6632 impedance analyzer on the 6223, 6243, and 6243H, 100 Hz to 3 MHz on the 6210, 6220, 6225, and 6240, and 100 Hz to 500 kHz or 200 kHz with the 6356 and 6355 LCR meters. These modules pair with Microtest LCR meters and impedance analyzers to measure inductance roll-off (saturation curves) as DC bias current increases. This characterization is essential for power inductor selection and validation: an inductor that meets its nominal inductance value at zero current may lose 30-50% of its inductance at rated current. Selecting the right model means matching both the peak bias current the part will see in circuit and the test frequency the paired analyzer must reach.

Applications

Power inductor manufacturers, automotive magnetics suppliers, server power supply designers, and EV charger component producers all rely on DC bias characterization to verify inductor performance under load. The modular approach allows test laboratories to configure exactly the current capacity their application requires, without investing in a fixed high-current system from the start.

Watch the Microtest DC Bias Current Source (6210-6243H) on YouTube

GSAS Micro Systems provides the full Microtest DC Bias Current Source range to power electronics manufacturers, inductor producers, and automotive component suppliers across India with INR invoicing and application support. Engineers in Bengaluru, Hyderabad, Chennai, Pune, Mumbai, and Delhi NCR assist with module selection, stacking configurations, and integration with existing LCR measurement setups.
