PicoScope 4000A Series

The PicoScope 4000A Series from Pico Technology delivers 12-bit vertical resolution across a range of 2, 4, and 8-channel USB oscilloscopes designed for applications where signal fidelity matters more than raw bandwidth. With native 12-bit hardware resolution expandable to 16-bit through Resolution Enhancement, input ranges from +/-10 mV to +/-50 V, and a 256 MS capture buffer shared across channels, the 4000A Series resolves fine signal details — power supply ripple, sensor noise floors, and low-level analog signals — that conventional 8-bit oscilloscopes miss entirely.

4000A Series Specifications

Feature	Specification
Models	4224A (2-ch), 4424A (4-ch), 4824A (8-ch)
Resolution	12-bit native, 16-bit with Resolution Enhancement
Bandwidth	20 MHz
Sample Rate	80 MS/s
Buffer Memory	256 MS shared
Input Range	+/-10 mV to +/-50 V
DC Accuracy	1%
AWG	14-bit, 80 MS/s update rate
SFDR	Up to 70 dB
Protocol Decode	CAN, LIN, FlexRay, I2C, SPI, UART (18 protocols)
Waveform Segmentation	10,000 segment buffer
Software	PicoScope 7 (Win/Mac/Linux)
SDK	PicoSDK (C, Python)
Interface	SuperSpeed USB 3.0
Power	USB bus-powered

The 12-bit advantage is the defining characteristic of this series: where standard 8-bit oscilloscopes divide the vertical range into 256 levels, the 4000A’s 12-bit ADC provides 4096 levels — sixteen times the vertical resolution. This makes the series the instrument of choice for characterizing power supply noise, measuring sensor output linearity, and analyzing audio or biomedical signals where small-signal details are critical. Built-in serial protocol decoders for 18 industry standards including CAN, LIN, FlexRay, I2C, SPI, and UART, combined with advanced triggering and the 14-bit arbitrary waveform generator, give the 4000A Series capabilities that rival benchtop instruments at a fraction of the cost and bench space.

Watch the PicoScope 4000A Series introduction

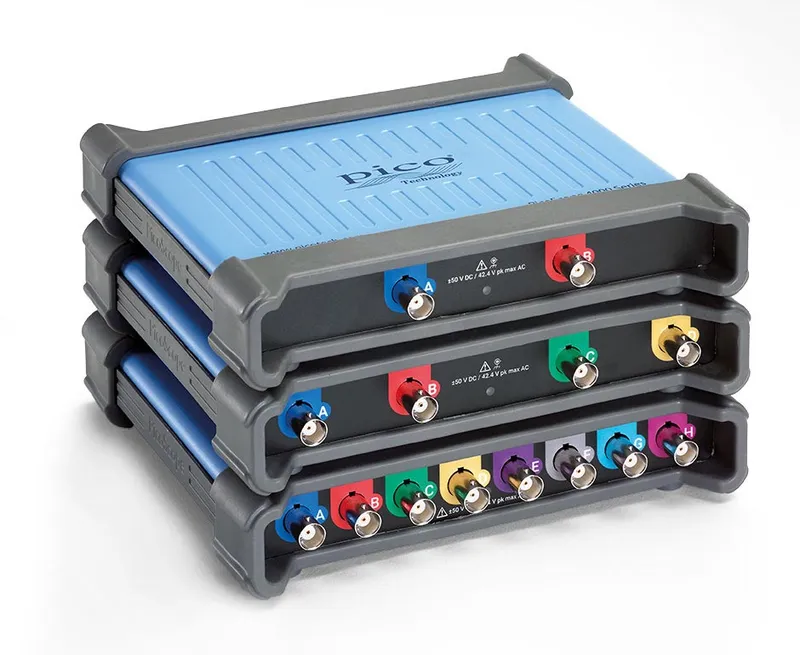

The 4224A, 4424A, and 4824A share identical per-channel performance, differing only in channel count: two, four, and eight channels respectively. Engineers select based on their simultaneous observation requirements — the 4224A for focused signal-pair analysis, the 4424A for typical embedded development, and the 4824A for automotive multi-bus or production test fixtures. GSAS Micro Systems supplies all three models with probe kit selection guidance and application support for test and measurement teams across India.
