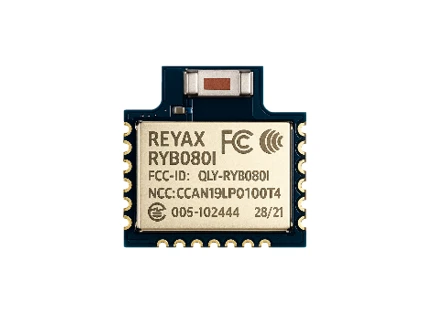

RYBW Series

The REYAX RYBW Series combines Bluetooth Low Energy 5.0 and Wi-Fi 802.11 b/g/n in a single compact module, providing the dual-connectivity architecture that IoT gateway and edge device applications require. BLE handles local communication with sensor nodes, wearables, and peripheral devices, while Wi-Fi provides the cloud uplink through existing wireless infrastructure. This dual-radio approach eliminates the cost and PCB area of integrating two separate modules for designs that need both short-range device communication and internet connectivity.

Feature	Specification
Wireless Protocols	IEEE 802.11b/g/n, Bluetooth 5
Wi-Fi Modes	Station, Access Point, Station + AP concurrent
BLE Range	Up to 100 m
Interface	UART with AT command firmware
Supply Voltage	1.75 V to 3.6 V
IPmax	500 mA Peak current rating
Weight	0.8 g
BLE TX Active Current	190 mA @HP Chain, Max 20 dBm
BLE RX Active Current	26.7 mA @HP chain
WLAN Data Transfer Average Current	270 mA @11 Mbps Tx
WLAN Data Receive Average Current	48.2 mA @72 Mbps Rx
Security	WPA/WPA2, BLE pairing and bonding
Antenna	PCB antenna or U.FL external antenna
Certification	FCC, NCC, MIC
Form Factor	Compact SMD module
Operating Temperature	-40 to +85 C

The RYBW Series supports concurrent BLE and Wi-Fi operation, enabling gateway functionality where the module simultaneously scans for BLE sensor advertisements and forwards aggregated data to a cloud platform over Wi-Fi. Station and Access Point modes can operate concurrently, allowing the module to connect to an existing Wi-Fi network while also hosting a local configuration network for initial device setup. AT command firmware over UART maintains the integration simplicity that characterizes the Reyax product line, requiring no RF stack development from the application team.

Smart home hubs, industrial IoT gateways, building automation controllers, health and fitness data aggregators, and retail point-of-interaction devices use the RYBW Series to bridge BLE sensor ecosystems to cloud platforms. The pre-certified module approach accelerates time to market by avoiding the cost and schedule impact of custom RF design and regulatory certification, while the compact form factor enables integration into space-constrained consumer and industrial enclosures.

GSAS Micro Systems provides REYAX RYBW Series modules from Indian inventory with INR invoicing, along with module selection guidance, antenna design consultation, and application architecture support for IoT gateway and edge computing projects across India.
