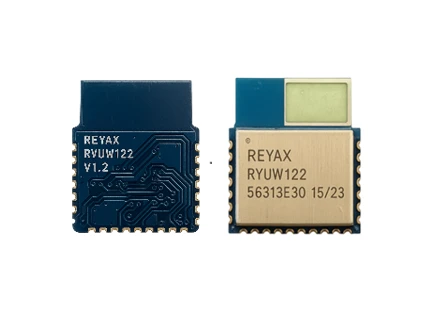

RYUW122

The REYAX RYUW122 is an Ultra-Wideband (UWB) module implementing IEEE 802.15.4z for centimeter-level indoor positioning and secure distance measurement. Unlike GPS, which cannot penetrate buildings, or Bluetooth/Wi-Fi, which offer only room-level accuracy, UWB provides +/- 10 cm positioning precision indoors using time-of-flight ranging between anchors and tags. The RYUW122 supports both Two-Way Ranging (TWR) for point-to-point distance measurement and Time Difference of Arrival (TDoA) for scalable multi-tag positioning systems.

Feature	Specification
Standard	IEEE 802.15.4z
Positioning Accuracy	+/- 10 cm
Ranging Modes	TWR (Two-Way Ranging), TDoA (Time Difference of Arrival)
Frequency Channels	6.5 GHz (Channel 5), 8 GHz (Channel 9)
Indoor Range	Up to 100 m
Interface	UART with AT command firmware
Supply Voltage	2.4 V to 3.6 V
RF Output Power Range	-32 dBm
RF Sensitivity	-100 dBm
Data Rate	850 Kbps, 6.8 Mbps
Weight	1g
ANCHOR Mode Current	8 mA
TAG Mode Current	81 mA
RF Transmit Current	86 mA
RF Disable Current	4 uA
Sleep Mode Current	2 uA
Baud Rate	9600, 115200 bps
Security	IEEE 802.15.4z STS (Scrambled Timestamp Sequence)
Form Factor	Compact SMD module
Development Kit	Available for rapid prototyping
Operating Temperature	-40 to +85 C

IEEE 802.15.4z adds secure ranging through Scrambled Timestamp Sequences (STS), preventing relay attacks and distance spoofing, a critical requirement for access control, contactless payment proximity verification, and secure vehicle entry applications. The AT command interface over UART provides the same ease of integration as Reyax’s LoRa modules, enabling hardware teams to add centimeter-accurate positioning without developing custom UWB firmware. A development kit is available for rapid prototyping and system-level evaluation before production integration.

Warehouse and logistics operations tracking asset positions across large facilities, manufacturing floors monitoring tool and work-in-progress locations, healthcare facilities tracking equipment and personnel, and smart building applications implementing zone-based access control use the RYUW122 for indoor positioning where GPS is unavailable and Bluetooth accuracy is insufficient. The module’s compact form factor and low integration complexity make it accessible to IoT teams adding positioning capability for the first time.

GSAS Micro Systems provides REYAX RYUW122 modules and development kits from Indian inventory with INR invoicing, along with indoor positioning system architecture guidance, anchor placement consulting, and integration support for asset tracking deployments.
