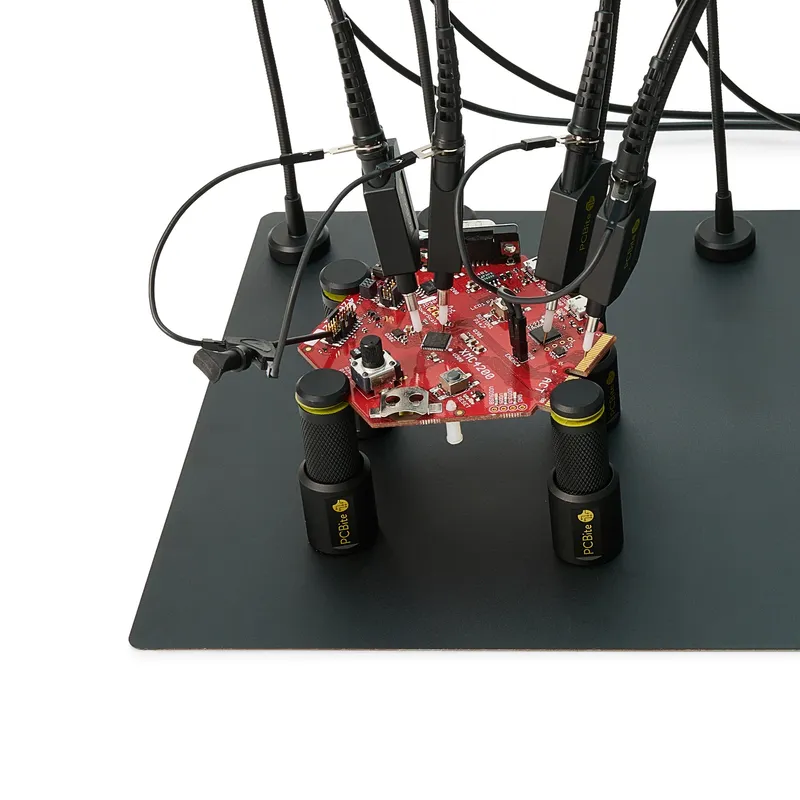

Sensepeek Sensepeek SQ500 500 MHz Hands-Free Oscilloscope Probe
Probes500 MHz passive 10:1 hands-free oscilloscope probe with 300V CAT II rating, 9 pF capacitance, insulated body, and PCBite magnetic mount. Buy in India from GSAS.
Bandwidth
500 MHz (-3 dB)
Attenuation
10:1
Input Impedance
10 M-ohm
Input Capacitance
9 pF
Max Input Voltage
300V RMS CAT II
Probe Tip Diameter
0.5 mm
Overview
About Sensepeek SQ500 500 MHz Hands-Free Oscilloscope Probe
The Sensepeek SQ500 is the highest-bandwidth probe in the SQ series, delivering 500 MHz passive 10:1 oscilloscope measurement with just 9 pF input capacitance, the lowest capacitive loading in the lineup. The 300V RMS CAT II voltage rating and 10 M-ohm input impedance make the SQ500 compatible with any standard oscilloscope. At 500 MHz bandwidth, the SQ500 captures fast-edge digital signals, USB 2.0, LVDS, MIPI interfaces, and switching power supply transients with minimal signal distortion.
The SQ500 features the same insulated, dual-mode design as all SQ-series probes, hands-free on the PCBite magnetic base plate with articulating arm and powerful magnet, or handheld for quick point measurements. The 0.5 mm spring-loaded exchangeable test needle provides precise contact on fine-pitch components. The lower center of gravity compared to earlier SP-series probes improves stability during multi-channel measurements. Multiple ground options, color-coded cable holders, and probe tip protection are included.
Watch the Sensepeek SQ500 oscilloscope probe introduction
Why GSAS for Sensepeek SQ500 in India
GSAS is Sensepeek’s authorized engineering partner in India, providing INR invoicing, evaluation units, and probe selection guidance from offices in Bengaluru, Hyderabad, Chennai, Pune, Mumbai, and Delhi NCR. Contact GSAS from Bengaluru to Delhi NCR for pricing on the SQ500 and complete PCBite kits.
