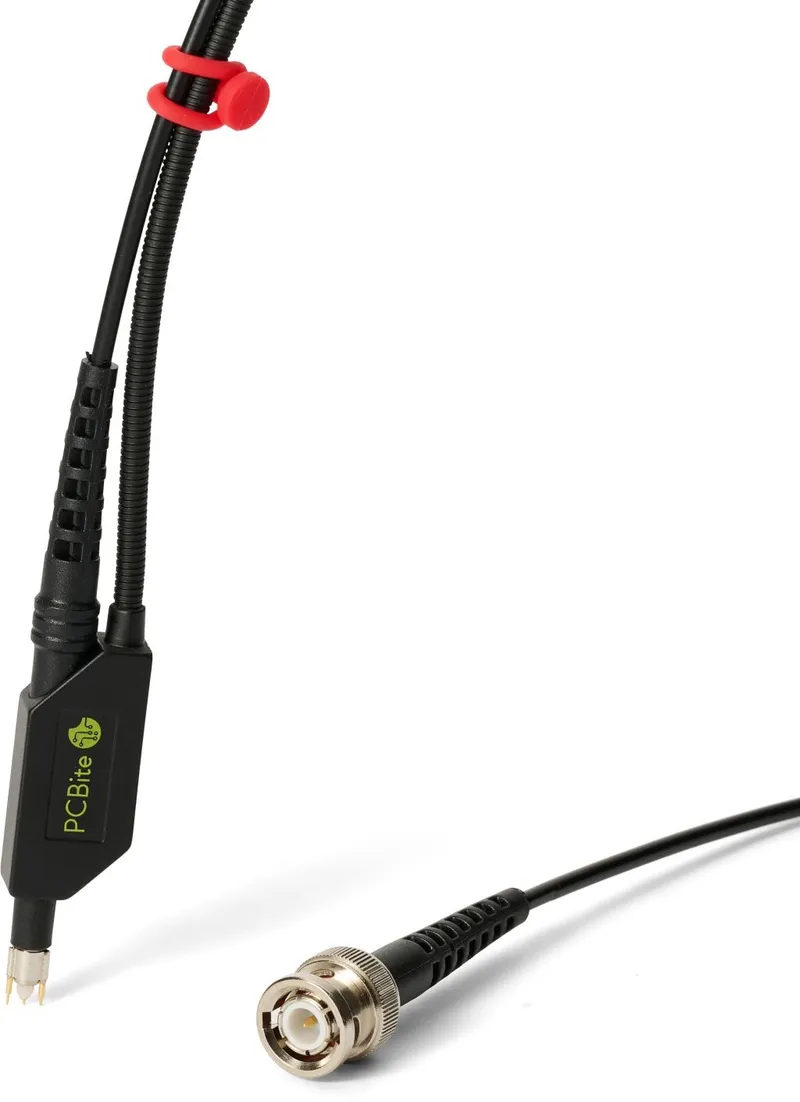

Sensepeek SQG15 1.5 GHz High-Frequency Probe

The Sensepeek SQG15 is a 1.5 GHz passive 10:1 high-frequency probe designed for GHz-class signal integrity measurements on the PCBite hands-free platform. With 500-ohm probe tip impedance and just 1.36 pF tip capacitance, the SQG15 minimizes capacitive loading and signal distortion when probing high-speed serial interfaces, clock distribution networks, and RF circuits. The sub-190 ps rise time and flat frequency response (±0.5 dB from DC to 1.5 GHz) deliver accurate waveform capture at data rates exceeding 3 Gbps.

The SQG15 is available in two coupling variants: SQG15-DC for DC-coupled measurements where DC offset matters, and SQG15-AC for AC-coupled measurements that block DC bias and focus on signal transitions. Both variants output via SMA connector for direct connection to 50-ohm oscilloscopes, spectrum analyzers, network analyzers, and power meters. Dual ground options, a 2.3 mm dual-needle ground for PCB-mounted RF connectors and a 6.5 mm single ground spring for wider spacing, ensure clean ground contact in any board layout. The exchangeable fine-pitch spring-tipped test needle, probe holder, storage case, and replacement accessories are included.

Watch the Sensepeek SQG-15 RF probe introduction

Why GSAS for Sensepeek SQG15 in India

GSAS is Sensepeek’s authorized engineering partner in India, providing INR invoicing and local support from offices in Bengaluru, Hyderabad, Chennai, Pune, Mumbai, and Delhi NCR. Contact GSAS from Bengaluru to Delhi NCR for pricing on SQG-series high-frequency probes.
