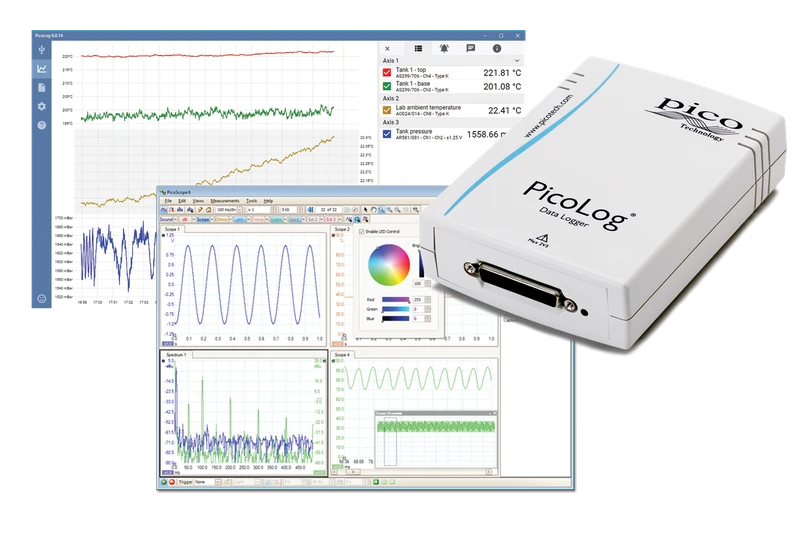

PicoLog 1000

The PicoLog 1000 series from Pico Technology is a USB data acquisition system that provides up to 12 single-ended input channels with 12-bit resolution and aggregate sampling rates up to 1 MS/s. The compact, bus-powered unit connects directly to a PC via USB and requires no external power supply, making it suitable for both bench-based data logging and portable field measurements.

Inputs accept 0-2.5 V signals directly and can be configured for voltage, resistance, or sensor measurements using external signal conditioning. The terminal board provides screw-terminal connections for easy wiring to sensors, transducers, and test points without soldering.

PicoLog 1000 Specifications

Feature	Specification
Channels	Up to 12 single-ended
Resolution	12-bit
Sampling Rate	Up to 1 MS/s aggregate
Input Range	0-2.5 V
Input Type	Voltage, resistance, sensor
Connection	Screw terminals
Power	USB bus-powered
Software	PicoLog 6 (Windows, macOS, Linux)
SDK	C, Python, LabVIEW
Data Export	CSV, clipboard, direct to spreadsheet
Alarm	Configurable threshold alerts

Watch the PicoLog 1000 introduction

PicoLog 6 software provides real-time graphing, alarm thresholds, and data export to CSV and spreadsheet formats on Windows, macOS, and Linux. An SDK for C, Python, and LabVIEW enables custom data acquisition applications and integration into automated test systems. The PicoLog 1000 serves environmental monitoring, production line data collection, laboratory experiments, and any application requiring multi-channel voltage or sensor logging at moderate resolution. GSAS Micro Systems provides the PicoLog 1000 with sensor integration guidance and applications support for test and measurement teams across India.
