Total Phase Beagle USB 480 Protocol Analyzer
Protocol AnalyzersNon-intrusive USB 2.0 High-Speed bus monitor with real-time class-level decoding and 64 MB on-board buffer. Available in India from GSAS with hands-on application engineering and local support.
USB Speeds
480/12/1.5 Mbps
Timing
16.67 ns resolution
Buffer
64 MB on-board
Capture Depth
25+ GB streaming
Class Decoding
HID, MSC, CDC, Audio, Video
Overview
About Beagle USB 480 Protocol Analyzer
The Beagle USB 480 Protocol Analyzer provides non-intrusive USB 2.0 High-Speed monitoring with real-time class-level decoding, a 64 MB on-board buffer for sustained burst capture, and 16.67 ns packet-level timing resolution. Captures stream to disk for traces exceeding 25 GB, enabling hours of USB traffic analysis without buffer limitations.
Features at a Glance
| Feature | Specification |
|---|---|
| USB Speeds | High (480 Mbps), Full (12 Mbps), Low (1.5 Mbps) |
| Timing Resolution | 16.67 ns per packet |
| On-Board Buffer | 64 MB |
| Streaming Capture | 25+ GB to disk |
| Class Decoding | HID, MSC, CDC/ACM, Audio, Video, Printer |
| Packet Filtering | Hardware SOF/NAK suppression |
| Sync I/O | Mini-DIN 9 (4 in / 4 out) |
| Speed Detection | Automatic with chirp capture |
| API | C, Python, .NET |

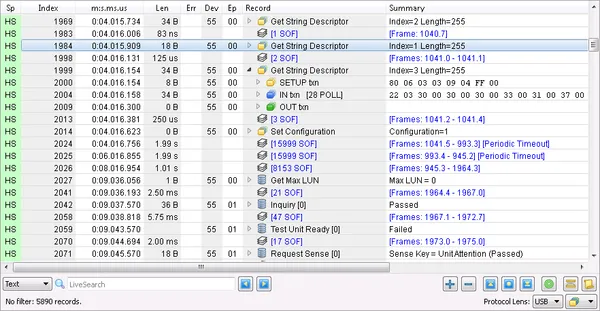

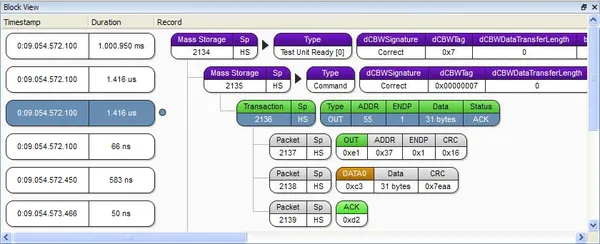

Real-time USB class-level decoding displays human-readable field names for HID, MSC, CDC/ACM, Audio, Video, Printer, and other USB classes. Hardware packet suppression filters out SOF packets, NAKs, or other high-frequency events to reduce capture file size and focus on relevant traffic. A Mini-DIN 9 connector with 4 inputs and 4 outputs provides synchronization with external test equipment. Automatic speed detection captures chirp sequences for High-Speed handshake analysis, making the Beagle USB 480 essential for USB device development, compliance pre-testing, and production verification.
USB Analysis Use Cases
- USB device development: Capture and decode every transaction between host and device during firmware development, identifying enumeration failures, stall conditions, and protocol violations in real time.
- Compliance pre-testing: Verify USB descriptor structures, timing parameters, and class-specific behavior before submitting devices for formal USB-IF certification.
- Production verification: Embed the Beagle in test fixtures for automated USB functional testing, using the API to script capture, parse transactions, and generate pass/fail reports.
- Audio and video streaming: Analyze isochronous transfer behavior for USB audio devices and webcams, identifying dropped packets and bandwidth issues under sustained streaming loads.
- HID device debugging: Decode HID reports in real time to troubleshoot keyboard, mouse, game controller, and custom HID interface behavior.
Watch the Beagle USB 480 Protocol Analyzer introduction
GSAS Micro Systems provides the Beagle USB 480 with local technical support and applications guidance for USB development teams across India, from consumer electronics to medical device manufacturers requiring USB compliance documentation.
