PicoScope 6000E

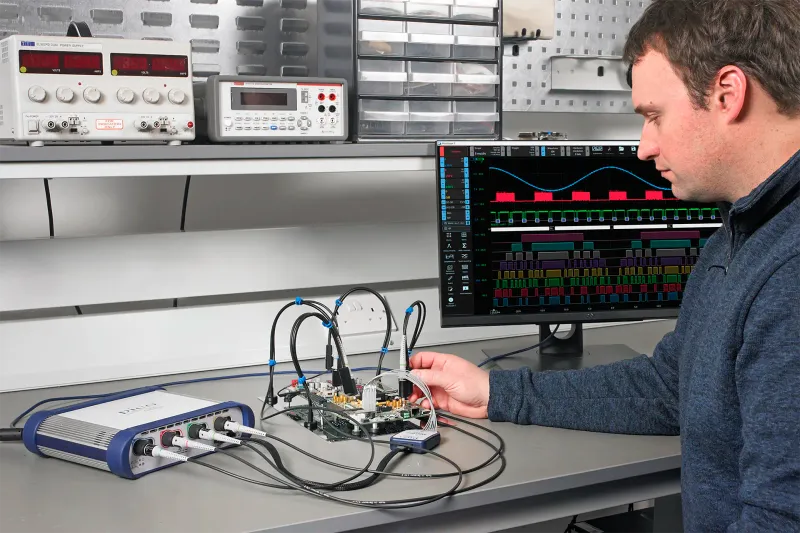

The PicoScope 6000E series from Pico Technology is a high-performance USB oscilloscope family offering 300 MHz, 500 MHz, 750 MHz, and 1 GHz bandwidth models, extending up to 3 GHz on the 6428E-D, with 4 or 8 analog channels. FlexRes technology allows engineers to trade bandwidth for resolution, operating at 8-bit for maximum bandwidth or increasing to 10-bit and 12-bit at reduced bandwidths for higher signal fidelity on precision measurements. A deep capture buffer of up to 4 GS provides extended acquisition times at full sample rate — essential for capturing rare events and long protocol sequences without sacrificing time resolution.

With real-time sampling up to 10 GS/s (single channel), the 6000E series handles high-speed digital interfaces (USB, HDMI, DDR), RF signals, and fast transients that lower-bandwidth instruments cannot resolve. The 8-channel variants provide the simultaneous observation capability needed for multi-rail power integrity analysis, high-speed serial bus debugging, and complex embedded system validation where four channels are insufficient.

PicoScope 6000E Specifications

Feature	Specification
Bandwidth	300 MHz / 500 MHz / 750 MHz / 1 GHz (up to 3 GHz on 6428E-D)
Analog Channels	4 or 8
Resolution	8-bit to 12-bit (FlexRes)
Sample Rate	Up to 10 GS/s (single channel)
Buffer	Up to 4 GS
Protocol Decode	I2C, SPI, UART, CAN, LIN, FlexRay, USB, I2S
Triggering	Advanced, mask limit, serial decode triggers
Math Channels	Waveform math, filters, FFT
MSO	Optional 16 digital channels
SDK	C, Python, MATLAB, LabVIEW
Software	PicoScope 7 (Win/Mac/Linux)

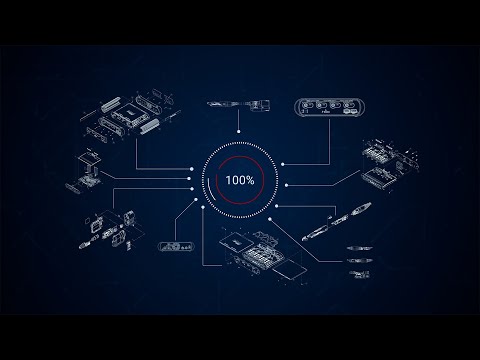

Watch the PicoScope 6000E introduction

PicoScope 7 software provides serial protocol decoding (I2C, SPI, UART, CAN, LIN, FlexRay, USB, I2S), advanced triggering including mask limit testing and serial decode triggers, waveform math with FFT, and a comprehensive SDK for C, Python, MATLAB, and LabVIEW automation. The 6000E series competes directly with premium benchtop oscilloscopes from traditional T&M manufacturers, delivering comparable bandwidth and deeper memory in a compact USB form factor at a lower price point. GSAS Micro Systems provides the PicoScope 6000E with bandwidth and channel count selection guidance, probe recommendations, and applications support for high-speed design, power integrity, and embedded systems teams across India.
