Saleae Logic 8

Logic Analyzers

Entry-tier 8-channel USB logic analyzer with analog, 100 MS/s digital, 10 MS/s analog at 10-bit, 25 MHz bandwidth, 23 built-in + 50+ community protocol decoders. Buy in India from GSAS, authorized Saleae engineering partner.

Digital Channels

Analog Channels

8 (same inputs, dual-purpose)

Digital Sample Rate

100 MS/s max (fewer channels over USB 2.0)

Analog Sample Rate

10 MS/s max

Digital Bandwidth

25 MHz

Analog Bandwidth (−3 dB)

1 MHz (at 10 MS/s)

ADC Resolution

10-bit

Logic Threshold

Fixed +1.2 V (VIH) / +0.6 V (VIL)

Input Range (Operating)

0 V to +5 V

Input Impedance

1 MΩ

Input Capacitance

10 pF

Max Input Protection

±25 V

Sample Depth

10+ billion samples (USB 2.0 streaming)

Interface

USB 2.0 High Speed

Operating Temperature

0°C to +70°C

Warranty

Standard manufacturer warranty

Country of Origin

Taiwan (HQ: South San Francisco, USA)

Buy on Store Request a Quote

Book a Demo

Authorized Saleae partner

Local FAE & application engineering

Hands-on training & integration

Manufacturer warranty

Overview

About Saleae Logic 8

The Saleae Logic 8 is the entry tier of Saleae’s USB logic analyzer line, and the bestseller. 8 dual-purpose channels (digital or analog), 100 MS/s max digital sampling over USB 2.0 (sustained rate scales with the channel count in use), 10 MS/s analog sampling at 10-bit resolution, 25 MHz digital bandwidth, fixed +1.2 V threshold, and a 0–5 V operating input range. Small enough to ship with every developer on an embedded team in India, capable enough to decode I²C, SPI, UART, and the rest of the everyday protocol stack.

Saleae Logic 8, entry-tier USB logic analyzer with analog channels, available in India from GSAS

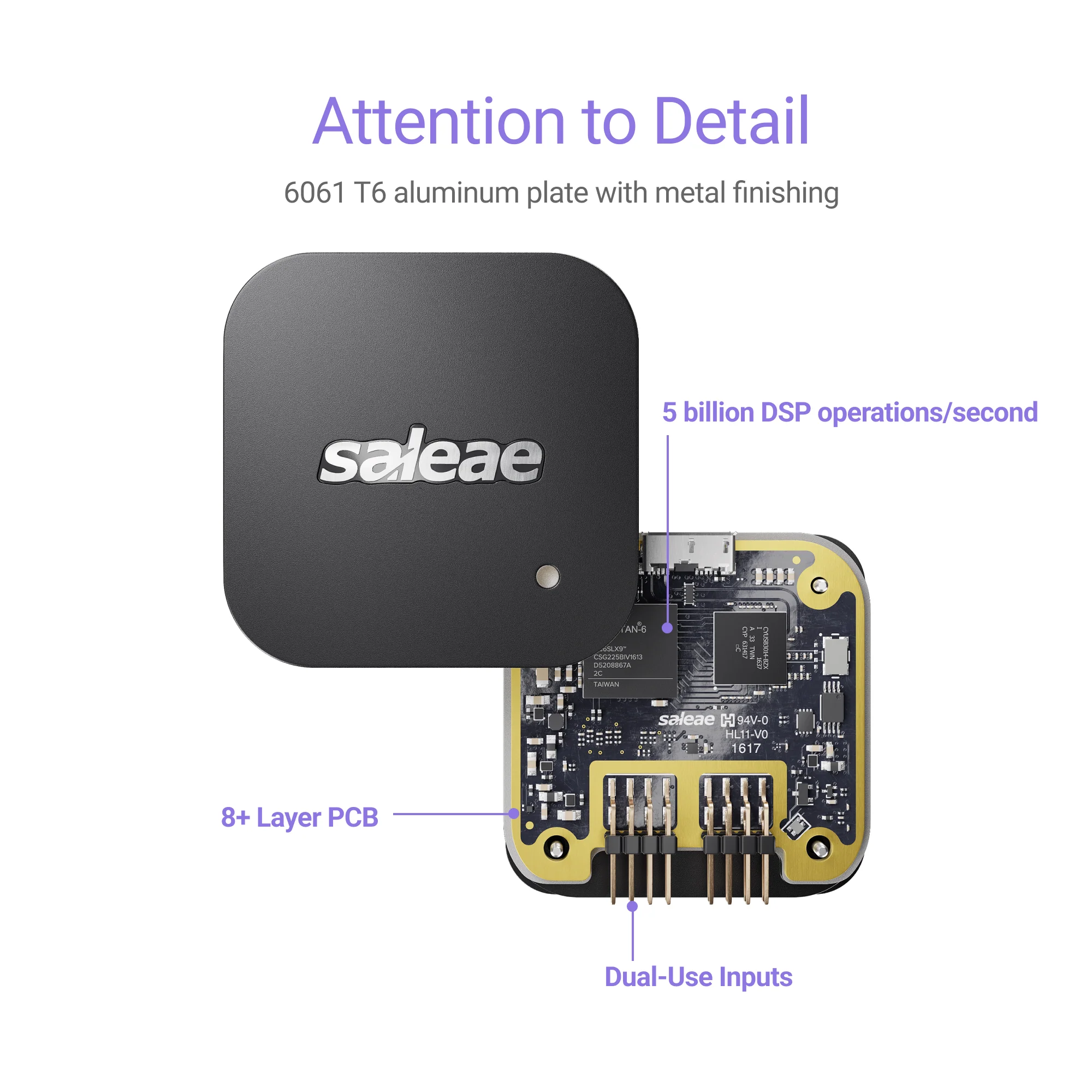

Saleae Logic 8 exploded view, 8+ layer PCB, 5 billion DSP operations/second, dual-use mixed-signal inputs, 6061 T6 aluminum chassis, engineering depth at the entry price point, available in India from GSAS

For embedded development teams across Bengaluru, Pune, and Chennai, the Logic 8 is the standard kit, the analyzer you reach for during sensor bring-up, EEPROM programming, UART console capture, and the first round of bus debug on any new board. Pair it with Logic 2 software (free), the in-app Marketplace of community decoders, and the Python HLA framework when an application-layer decoder is needed. Steps up to the Logic Pro 8 or Pro 16 when the design needs higher sample rates, selectable thresholds, or 12-bit analog precision.

In the box

Every Saleae Logic 8 ships with:

Logic 8 analyzer pod
1× Wire Harness with hook-style test clips (8 channels, covers channels 0–7)
USB-C to USB-A cable (for the host PC connection)
Quick-start documentation

Most India teams add a Saleae Logic-to-Wires flying-leads cable and a 2x4 header cable for breadboard, through-hole, and production-debug-header use cases, see Companion accessories below.

Companion accessories

Saleae Wire Harness, Test Clips Set: additional hook-clip harnesses for spare-parts, multi-bench, or when the original clip jaw wears out
Saleae Logic-to-Wires Cable (Flying Leads): direct labelled flying leads for breadboard, wire-wrap, and solder-tag probing
Saleae Logic 2x4 Header Cable (Gen 2): 2x4-to-2x4 for boards with a Saleae-pinout debug header

Why GSAS for Saleae Logic 8 in India

GSAS is Saleae’s authorized India engineering partner. The Logic 8 ships through GSAS with engineering support across Bengaluru, Hyderabad, Chennai, Pune, Mumbai, and Delhi NCR: on-site protocol-decode walkthroughs, Python automation help, and India-side RMA handling. For the full spec sheet, see the Logic 8 datasheet; for a one-page summary, see the Logic 8 fact sheet. Request a Quote for pricing and lead time, or Contact us.

Videos

Saleae Logic 8 in Action

Saleae Logic 2 Tutorial: Capturing Data

Saleae Logic 2 Tutorial: Protocol Analyzers

Blog

Saleae Insights

Engineer probing a densely populated PCB with a Saleae Logic MSO mixed-signal analyzer on an electronics workbench in India

Comparisons & Buying Saleae

Saleae Logic MSO: Standard or Pro? The India Buying Decision

Standard and Pro are the same Logic MSO hardware, the choice is 9-bit vs 12-bit analog resolution and sample memory per channel. Here is how Indian engineering teams should decide, model by model.

17 Jul 2026 · 6 min read

USB logic analyzer with grabber clips on an embedded board, laptop showing decoded I2C/SPI digital timing, logic analyzer buying guide from GSAS Micro Systems

Test & Measurement Saleae Total Phase

Best Logic Analyzer in India (2026): A Vendor-Neutral Buying Guide for Embedded Teams

Channels, sample rate, protocol decode, and streaming vs buffer, a vendor-neutral buying framework for choosing a USB logic analyzer or protocol analyzer in India, funnelling to the SKUs that actually fit your bus.

5 Jun 2026 · 10 min read

AI data center hall with high-density GPU racks and an Indian test-and-measurement engineering bench in the foreground, GSAS Micro Systems

Test & Measurement Arm GW Instek

AI Data Centers in India: Test, Measurement & Memory Boom

AI is a hardware supercycle. Every AI rack has to be designed, brought up, powered, fed with memory, and kept alive, and each of those is a test, measurement and memory problem. Here is the full engineering toolchain behind the AI data center, mapped to what Indian teams can buy today through GSAS.

4 Jun 2026 · 14 min read

More from Saleae

All Saleae products →

Saleae Logic Pro 8

Professional-tier 8-channel mixed-signal USB logic analyzer, 500 MS/s digital, 50 MS/s analog at 12-bit, selectable thresholds. Buy in India from GSAS, authorized Saleae engineering partner.

View Saleae Logic Pro 8 →

Saleae Logic Pro 16

Flagship 16-channel mixed-signal USB logic analyzer, 500 MS/s digital, 50 MS/s analog at 12-bit, 100 MHz bandwidth, 23 built-in + 50+ community protocol decoders. Buy in India from GSAS, authorized Saleae engineering partner.

View Saleae Logic Pro 16 →

FAQ

Common questions about Saleae Logic 8

Is the Logic 8 enough for my project, or should I jump to a Pro?

If you're doing single-bus debug (I²C + chip selects, SPI + clock + interrupt, async serial console capture) and your fastest signal is under ~25 MHz, the Logic 8 is the right tool. Step up to the Logic Pro 8 when you need 500 MS/s digital sample rate (vs the Logic 8's 100 MS/s max), 12-bit analog precision (vs 10-bit), selectable logic thresholds (vs the fixed 1.2 V), or wider input range.

Will the Logic 8 work with my Mac?

Yes. Saleae's Logic 2 software runs natively on macOS (Intel and Apple Silicon), Windows 10/11, and Linux x86, same single binary. The Logic 8 connects via USB-C to USB-A and works identically on every OS.

What's in the box?

Logic 8 analyzer pod, 1 wire harness with hook-style test clips covering 8 channels, USB-C to USB-A cable, and quick-start documentation. Logic 2 software is a free download, no licence, no per-seat fee. Many India teams add a flying-leads cable for breadboard probing.

What's the warranty and RMA process?

Saleae provides a standard manufacturer warranty. GSAS supports RMA handling for units within the warranty terms (i.e., the warranty has not been voided through user damage, modification, or misuse). For exact warranty duration and conditions, refer to Saleae's official warranty documentation; for India RMA logistics, contact GSAS.

Can I run Python automation with the Logic 8?

Yes. Saleae's Logic 2 Automation API is the same Python interface that drives every model in the line, capture, decode, export, and `.sal` diff against a known-good baseline. The Logic 8 is the standard pick for an entry-tier nightly regression rack on a bench Raspberry Pi or x86 mini-PC.
