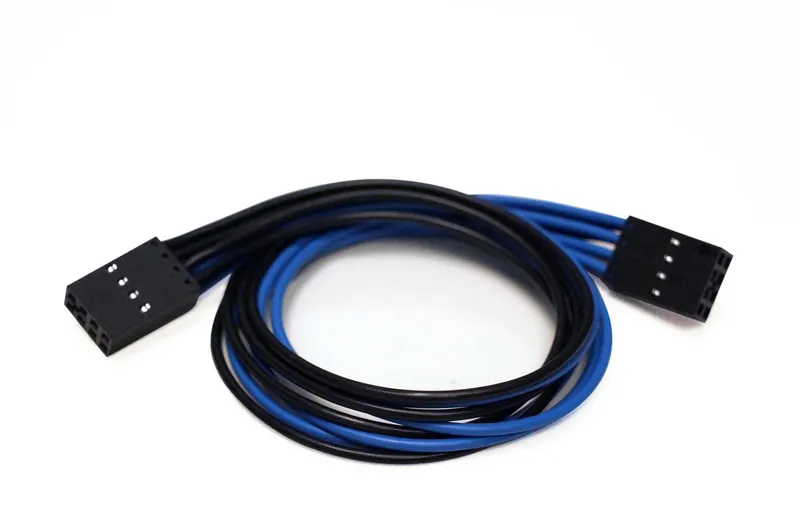

Saleae Saleae Logic 2x4 Header Cable (Gen 2)
Logic Analyzer AccessoriesGenuine Saleae 2x4 header cable for Logic 8, Logic Pro 8, and Logic Pro 16, both ends terminated in the 2x4 polarised header so you can mate directly to a board-mounted Saleae debug header without flying leads. Available in India through GSAS, authorized Saleae engineering partner.
Compatible Models
Saleae Logic 8, Logic Pro 8, Logic Pro 16 (every model that uses the Saleae 2x4 input header)
Connector, both ends
Polarised 2x4 header, gen-2 Saleae spec
Channels per cable
8 (full Logic 8 / Pro 8, or one half of a Logic Pro 16)
Use Case
Debug rigs and test fixtures that have a Saleae-pinout 2x4 connector designed into the PCB, eliminates per-channel lead handling and the wear-and-tear of repeated probe-tip cycles
Country of Origin
Taiwan (HQ: South San Francisco, USA)
Saleae Part Number
SAL-00117
Warranty
Standard manufacturer warranty
Overview
About Saleae Logic 2x4 Header Cable (Gen 2)
If your hardware team has already designed a Saleae-pinout 2x4 debug header into the production PCB, the 2x4-to-2x4 header cable is the cleanest way to connect a Logic analyzer for production validation, end-of-line test, or field debug, no flying leads to manage, no contact bounce from test clips, no per-channel mis-wiring. One cable plugs the analyzer into the board exactly the same way every time.
When to choose the 2x4 header cable over flying leads
Pick this cable when:
- Your PCBs include a Saleae-pinout debug header as a standard production design feature
- You run repeated automated captures on a CI/CD test rack and need a cable that won’t shift between runs
- You hand boards back and forth between developers and the cable wear-out rate on flying-leads cables is becoming an issue
- You’re building a permanent end-of-line test fixture where the Logic analyzer is rack-mounted
Pick the Logic-to-Wires flying-leads cable instead when probing breadboards, wire-wrap rails, or one-off test points. Most labs need both.
Saleae 2x4 header pin-out reference
The Saleae 2x4 header carries 8 channels + 2 GND pins in a polarised arrangement. The same pin-out is used on the Logic 8, Logic Pro 8, and Logic Pro 16. For board designers integrating the connector, see the Saleae hardware-design notes on saleae.com, the GSAS engineering team can also review your debug-header placement during a pre-production bench visit.
Compatible Saleae models
- Saleae Logic 8
- Saleae Logic Pro 8
- Saleae Logic Pro 16, pair with a second cable for full 16-channel capture
Buy in India through GSAS
GSAS is Saleae’s authorized India engineering partner. We supply genuine Saleae 2x4 header cables on quote with GST invoicing, GeM / SAP Ariba / Coupa / TReDS procurement routing, and engineering support across Bengaluru, Hyderabad, Chennai, Pune, Mumbai, and Delhi NCR.
Request a Quote for current pricing and lead time, or Contact GSAS for design-in support on adding a Saleae-pinout debug header to your PCB.
Blog
Saleae Insights
Best Logic Analyzer in India (2026): A Vendor-Neutral Buying Guide for Embedded Teams
Channels, sample rate, protocol decode, and streaming vs buffer, a vendor-neutral buying framework for choosing a USB logic analyzer or protocol analyzer in India, funnelling to the SKUs that actually fit your bus.
AI Data Centers in India: Test, Measurement & Memory Boom
AI is a hardware supercycle. Every AI rack has to be designed, brought up, powered, fed with memory, and kept alive, and each of those is a test, measurement and memory problem. Here is the full engineering toolchain behind the AI data center, mapped to what Indian teams can buy today through GSAS.
Logic Analyzer vs Oscilloscope vs MSO: When You Actually Need Analog Channels (Saleae Logic MSO)
A decision tree for Indian embedded teams: logic analyzer, oscilloscope, or mixed-signal oscilloscope? A channel-count heuristic, the three questions that actually decide it, and when 4 real analog channels in a Saleae Logic MSO beat buying a separate benchtop scope plus a separate logic analyzer.
Related products
More from Saleae
All Saleae products →

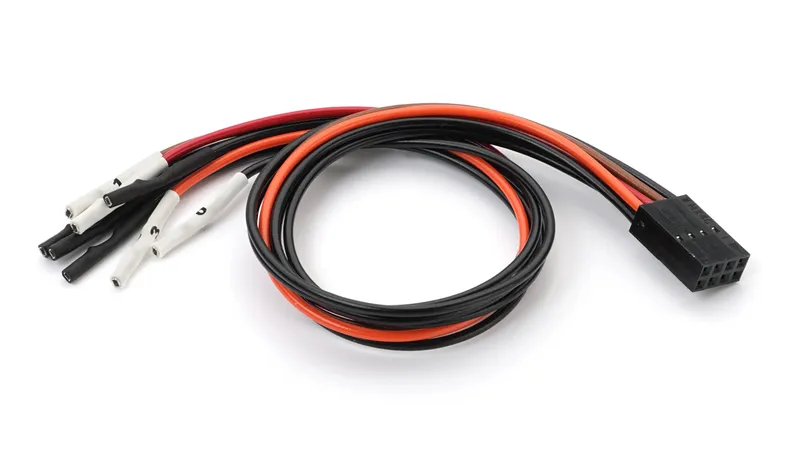

Saleae Wire Harness with Test Clips: 16-Channel Set
Genuine Saleae wire harness with hook-style test clips for Logic Pro 16, four 2x4-to-clips harnesses cover channels 0–15 in matched pairs, ready for fine-pitch SMD probing without solder. Available in India through GSAS, authorized Saleae engineering partner.
View Saleae Wire Harness with Test Clips: 16-Channel Set →

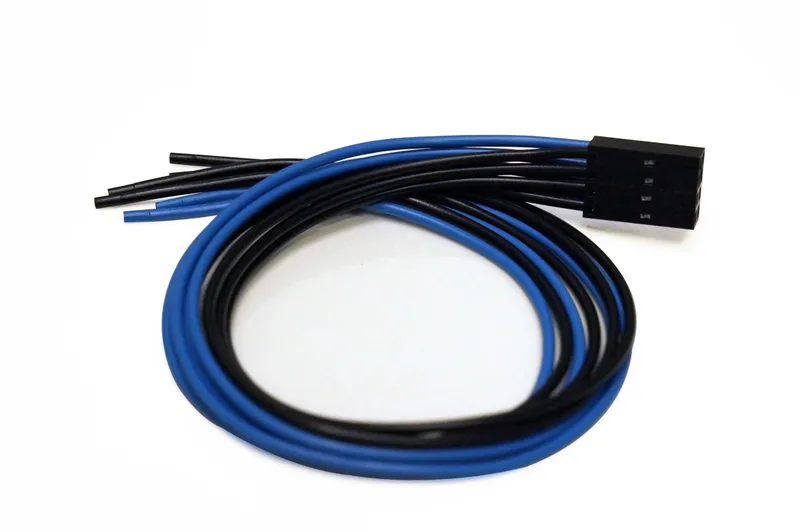

Saleae Logic to Wires Cable (Flying Leads)
