GSAS Hardware Products
Designed & Manufactured in Bangalore
Our Hardware Portfolio
GSAS Micro Systems is not just an engineering partner, it is a hardware design house. Since 2010, GSAS has designed, manufactured, and shipped its own branded products from Bangalore. From 4K inspection microscopes to Arm development boards, these products are engineering tools built by the same team that supplies embedded tools from our global partner ecosystem.
Whether you are equipping an engineering lab, setting up a production inspection station, or outfitting a university classroom, GSAS products offer the quality of imported tools with local manufacturing, support, and pricing. Visit our engineering services page to learn about custom hardware design and ODM capabilities.
Product Families
Browse by Category
GSAS Digital Microscopes: 4K Inspection to Portable Field Units
Highest-ASP product family, flagship of the GSAS product line
6 models covering every inspection need, from portable field units to 4K autofocus workstations with 24-inch integrated displays.
GSAS 2422-4K Autofocus Flagship
The flagship GSAS microscope. 4K UHD autofocus sensor, 24-inch integrated display, 10x–230x magnification, measurement software, and HDMI/USB output. Built for PCB inspection stations, quality control labs, and rework benches where image clarity and speed matter most.
GSAS 424-4K Compact Production
4K UHD resolution in a compact footprint. 4.5-inch integrated display, 10x–150x magnification, and HDMI output. Designed for production-line inspection and soldering work where bench space is at a premium but image quality cannot be compromised.
Complete Microscope Range: Comparison
| Model | Resolution | Display | Magnification | Focus | Best For |
|---|---|---|---|---|---|
| GSAS 2422 | 4K UHD | 24-inch integrated | 10x–230x | Autofocus + manual | QC labs, rework stations |
| GSAS 424 | 4K UHD | 4.5-inch integrated | 10x–150x | Manual | Production line, soldering |
| GSAS 412 | Full HD 1080p | 12-inch integrated | 10x–260x | Manual | Tabletop inspection, rework |
| GSAS 2412 | 5MP | USB (external monitor) | 20x–300x | Manual | PC-based measurement |
| GSAS 248 | Full HD 1080p | External (HDMI/USB) | 10x–200x | Manual | Flexible inspection |
| GSAS 223 | 2MP | 3.5-inch LCD | 20x–200x | Manual | Field inspection, portable |
Application industries: Electronics manufacturing, incoming inspection, QC/QA labs, PCB rework and repair, solder joint inspection, failure analysis, education and training, and field service.
Our design services team uses these microscopes daily at our Bangalore facility for PCB inspection during prototype builds. See our engineering services →
GSAS Arm Development Boards
LPC 1768, Arm Cortex-M3
Arm Cortex-M3 evaluation board built around the NXP LPC1768 at 100 MHz. On-board JTAG/SWD debugger, USB, UART, SPI, I2C, CAN, and Ethernet interfaces. Ships with GSAS reference BSP and ready-to-run example projects for Keil MDK. Used across Indian engineering labs for firmware development courses and embedded training.
LPC 2929, ARM9
ARM9 evaluation platform built around the NXP LPC2929 at 125 MHz. Dual CAN interfaces for automotive gateway prototyping, plus UART, SPI, and I2C. JTAG debug interface. Ideal for CAN bus development, automotive ECU prototyping, and embedded Linux bring-up.
Dog-fooding credibility
Both development boards were designed using the same Siemens EDA tools GSAS distributes, schematic capture in Xpedition, PCB layout with constraint-driven routing, and DFM analysis before production. When we recommend Siemens EDA to your design team, we speak from direct manufacturing experience.
GSAS Microprocessor Trainer Kits
8051 Trainer Kit
Complete 8051 microcontroller training system. Built-in ISP programmer, LEDs, 7-segment displays, LCD, keypad, ADC/DAC interfaces. Comprehensive lab manual included. The go-to platform for embedded systems introductory courses.
8085 Trainer Kit
Classic 8-bit microprocessor training system based on Intel 8085A. Hex keypad, LED display, built-in debug monitor, 32 KB RAM, 16 KB EPROM. Expansion bus connector for GSAS peripheral study cards. Standard across Indian university microprocessor labs.
8086/8088 Trainer Kit
16-bit microprocessor training system based on Intel 8086/8088. Memory subsystem, parallel I/O (8255), timer (8253), interrupt controller (8259), and DMA. Designed for computer architecture and advanced microprocessor courses.
These trainer kits are standard equipment across Indian university engineering labs, from VTU and Anna University affiliates to IITs and NITs. Each kit ships with comprehensive lab manuals aligned to common university syllabi. For institutional orders (10+ units), contact us for volume pricing.
GSAS Peripheral Study Cards & Interface Modules
4 Peripheral IC Study Cards
Plug-in study cards for hands-on peripheral interfacing labs. Each card isolates a single IC for focused study, students program the chip directly through the trainer's bus connector, observing real hardware behavior rather than simulation.
17 Interface Modules: 3 Families
| Family | Modules | Count | Key ICs / Devices |
|---|---|---|---|
| Analog I/O | 16-ch ADC, 12-bit ADC, Dual DAC, Dual Slope ADC, Temp Transducer, Signal Conditioning | 6 | Up to 12-bit resolution |
| Display & Input | 7-Segment, LCD 16x2, Keypad 4x4, Keyboard Display Controller, Music Tone Generator | 5 | HMI design, display interfacing |
| Motor & Control | DC Motor, Stepper Motor, Elevator Simulator, Traffic Light, Logic Controller, RTC | 6 | Real-world control systems |
Combined with GSAS trainer kits and study cards, these interface modules form a complete lab ecosystem for microprocessor and embedded systems education. All modules connect through the standard GSAS bus connector, no wiring, no breadboards, no compatibility issues.

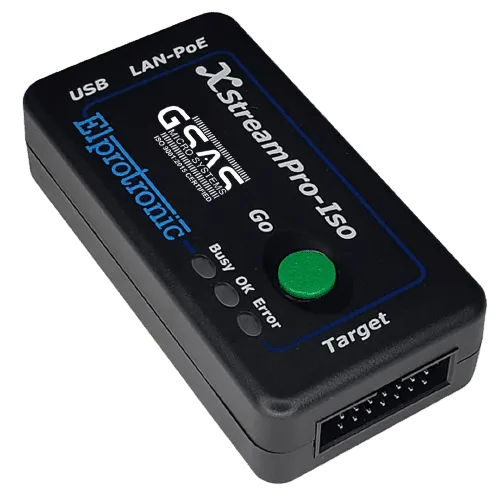

GSAS iMotion Programmer
Dedicated programming solution for Infineon iMotion motor control ICs (IMC and IMD series). Assembled by GSAS in Bangalore in partnership with Elprotronic. USB interface for in-circuit programming on the production line. This product demonstrates GSAS's ability to take a partner's design and manufacture it locally, reducing lead times and customs overhead for Indian customers.
ODM Assembly: FADOS by CBT Electronic
GSAS assembles FADOS circuit board testers for CBT Electronic (Germany). This ODM relationship is proof of manufacturing capability, GSAS takes CBT's design, sources components, assembles the hardware, tests each unit, and ships to end customers. The same SMT lines, test fixtures, and quality processes that build GSAS's own products are available for your hardware.
If you have a hardware product that needs assembly in India, whether for cost optimization, supply chain localization, or Make in India compliance, GSAS has the infrastructure, quality systems, and engineering team to manufacture it.
Hardware Design Services
Beyond products, full-cycle hardware engineering
GSAS offers complete hardware design services from our Bangalore facility: schematic capture, PCB layout, signal integrity analysis, DFM review, prototype assembly, and turn-key product development. The same engineering team that designed 75+ boards for GSAS's own product line is available for your project, using the same Siemens EDA, Arm, and test tools we distribute.
Whether you need a single prototype or ongoing ODM production, our engineering facility combines design expertise with manufacturing capability under one roof.
Why GSAS Products
Why Buy Direct from the Manufacturer
75+
Boards Designed
15+
Years in Production
6
Product Categories
- Direct from manufacturer: no middlemen. GSAS designs, builds, tests, and ships every product from Bangalore
- On-site training: product demonstrations, installation support, and operator training at your facility
- Warranty and service: local repair, calibration, and spare parts from 7 offices across India
- ODM capability: we also assemble products for partners like CBT Electronic (FADOS). Ask about custom manufacturing
- Volume pricing available for institutional, educational, and OEM orders, contact us for custom configurations
- Local procurement: INR invoicing with GST-compliant documentation for all purchases, with GeM, SAP Ariba, Coupa, TReDS, and government procurement support
GSAS's India design and customer footprint clusters in Bengaluru, India's largest embedded systems and semiconductor design hub. Read our Bengaluru engineering ecosystem guide →
Videos
GSAS Video Library
GSAS Micro Systems: Company Introduction
FADOS Board Tester Introduction
FADOS + Microscope Workflow
Hardware Designed & Built in India
From 4K inspection microscopes to ARM development boards, explore the hardware GSAS designs, manufactures, and supports from Bangalore.
